Facts

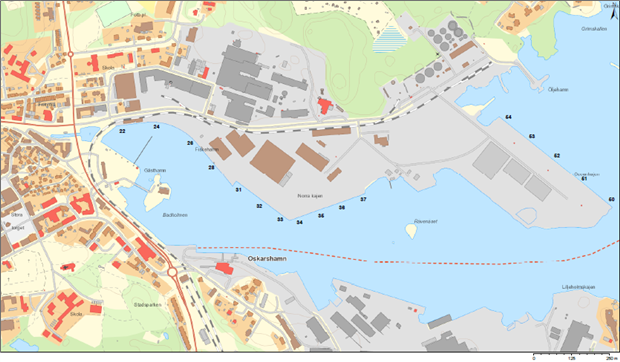

karta hamnen

Fairways

Wather depth 11 - 13 m.
Fairway width 96 m.

Quays

Oil quay, length 25 m, max depth 10,0 m, max lenght vessel 145 m.
Ocean quay, length 483 m, max depth 10,3 m, max lenght vessel 220 m.
North quay, lenght 550 m, max depth 7,3 m.
Other quays, lenght 1 200 m, max depth 4,5 - 7,3 m.

Ro-Ro Ramp

Width 26,5 m, length 141 m, max depth 7,3 m.
Width 20,0 m, length 175 m, max depth 5,0 m.
Width 20,0 m, length 214 m, max depth 8,0 m.

Warehouse

44 000 m2 + two large storing areas in connection to quay.

Land Area

North port area 390 000 m2
South quay and ferry service area 51 000 m2

Cranes and Trucks

3 Cable cranes with lifting capacity of 63 - 100 tons.
2 Folding cranes with lifting capacity of 14 tons.
18 Trucks, with lifting capacity of 1,5 - 45 tons.
10 Loaders, with lifting capacity of 4,5 - 18 tons.
5 Terminal tractors, with lifting capacity of 30 - 35 tons.
2 Trailers.
1 Sweeper.

Tugboats

Tugboat HERBERT and tugboat OSCAR are both stationed in the port of Oskarshamn. More information about the tugs can be found here.
